[WIP] DM MG Exia(Repairs) WIP 1
So after much planning, I finally got around to working on this.

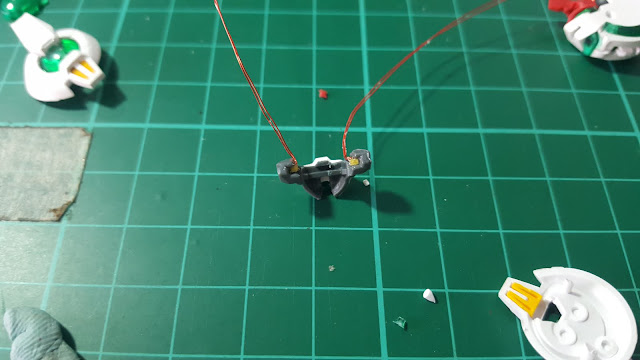

Much of the work on the head was on where and how to light up the clear pieces on the heads' side. The 0603 SMD LEDs I used was just perfect for the space on the sides.
I was actually surprised with the amount of space inside the arm inner frame. Those areas really made passing wires through easier.
The Exias's knee design actually made it hard to pass wiring through that area. There were a few overlapping pieces that could cause mobility problems if not addressed properly.
Also, I had a pair of wires go out the foot so that I can hide the wiring into a display base when I want to display the kit on a standing position. I will also be putting connectors into the crotch area if ever I want to display it in more dynamic/ flying poses.
Since majority of the wiring will be meeting at the main body of the kit, that's what I built last.
1st, I didn't use the included LED units since I needed to make some space in the chest area for my wiring. Same with the arms and leg parts, the main body was quite spacious so wiring wasn't really complicated.
The final section for wiring was the waist area. Instead of the wiring going around the waist area, I had the wiring pass through the waist area so it looks cleaner with the wiring less obvious.
I really enjoyed this project. With enough planning I was able to finish this in a week, working for a few hours every day.
